Minuteman UPS Solutions

Reliable Power Protection for Every Scale and Scope

Minuteman UPS Solutions

Reliable Power Protection for Every Scale and Scope

Complete Power Protection for Critical Equipment

Ensure the safety and continuity of critical communications, information, and security systems with Minuteman’s high-quality power protection products. Their range of Uninterruptible Power Supply (UPS) solutions safeguards everything from individual desktops to entire facilities. With options extending from 350VA to 10kVA, finding the ideal system to keep business operations running smoothly during power outages is straightforward and accessible.

Battery Backup Options Tailored for Diverse Needs:

  • Network & Server UPS: Maintain server uptime and data integrity.
  • Security System & DVR UPS: Secure uninterrupted surveillance and security operations.
  • Telecom/Telephone System UPS: Keep communication lines open without disruption.
  • Education Sector UPS: Ensure continuous operation of educational technologies and campus networks.
  • Gaming/Casino/Slot Machine UPS: Provide reliable power for gaming operations and equipment.

Ideal for Various Environments:

  • Small Office/Home Office (SOHO)
  • Residential Applications
  • Medium-sized Businesses
  • Large Enterprises
  • Point of Sale (POS) Systems

Explore Minuteman’s extensive lineup of UPS products and find the perfect match for your customers’ power protection needs.

Workstations, Small Security Equipment/DVRs, & Peripherals

PRO-RT2U® LINE INTERACTIVE UNINTERRUPTIBLE POWER SUPPLY

Midsize Network, Phone, & Security/DVR Systems

Enterprise Data Center, Network/Server, & Security Systems

Workstations, Small Security Equipment/DVRs, & Peripherals

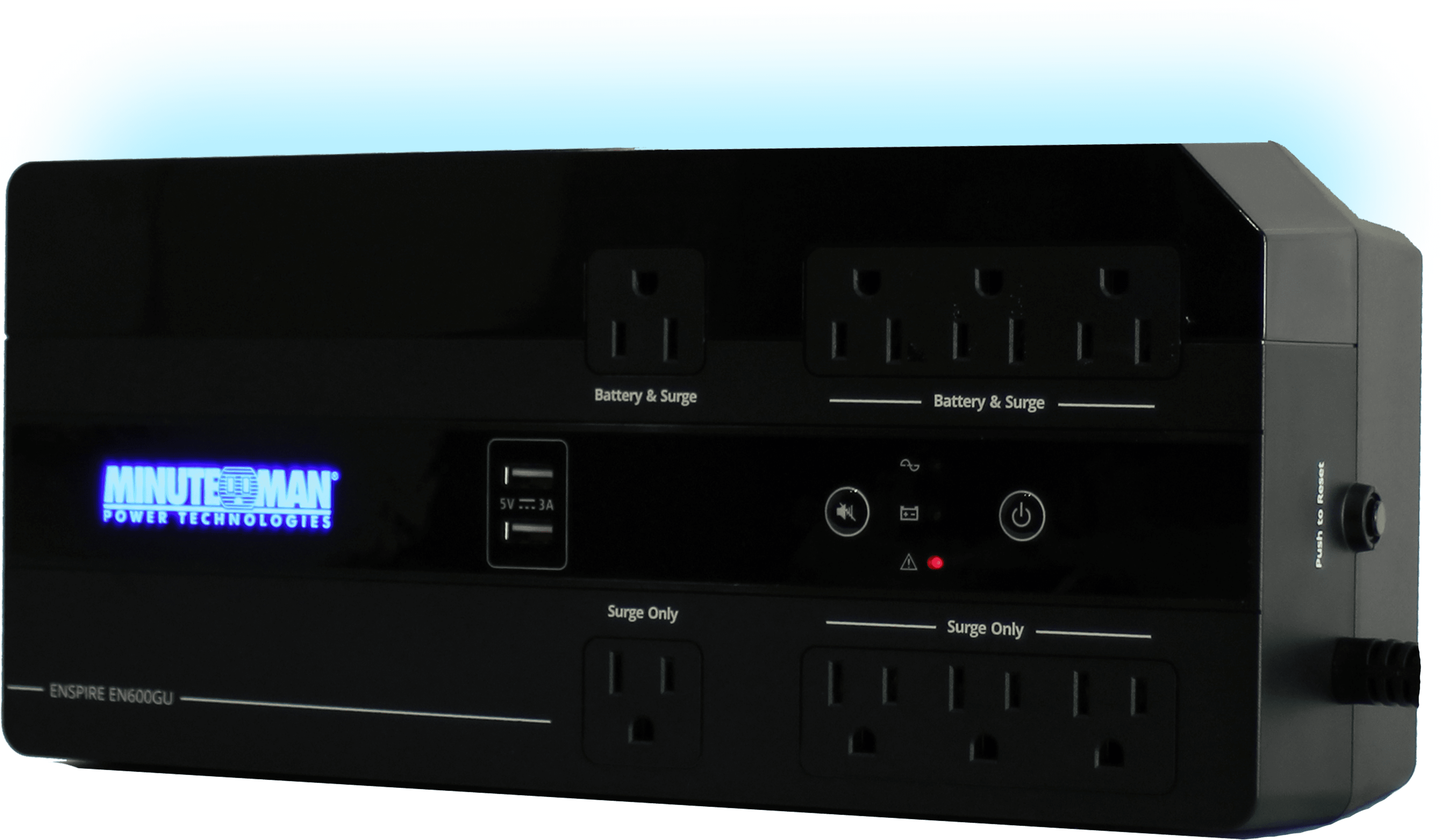

ENSPIRE-G® UNINTERRUPTIBLE POWER SUPPLY

Low Profile, High Protection

The Minuteman Enspire-G Series UPS is designed to offer cost-effective, high-performance protection for valuable equipment. With features like battery support, spike and surge protection, and optional USB charging ports (available in select models), it ensures devices stay powered and safe.

APPLICATIONS

  • Gaming Consoles
  • Home Office & Entertainment
  • Desktop PCs
  • Workstations
  • Routers & Modems
  • Small Security Systems
  • Gaming Consoles
  • Home Office & Entertainment
  • Desktop PCs
  • Workstations
  • Routers & Modems
  • Small Security Systems

  • Versatile Outlet Options
    • 450VA and 600VA models – Four surge and battery-protected outlets, and four surge-only outlets
    • 750VA and 900VA models – Five surge and battery-protected outlets, and five surge-only outlets
  • Outlet control (900VA model ONLY): Automatically turns off designated outlets when the connected equipment is off or in standby, saving energy.
  • Compact, Wall-Mountable Case
  • 5-foot power cord with right-angle plug
  • Input circuit breaker protection
  • Tool-less, Hot-Swappable Battery Replacement
  • USB Communications: Enspire UPS USB connections are automatically recognized by Microsoft Windows (600/750/900VA models)
  • USB Charging Ports (600 and 900VA models only)
    • 600VA: Two Type-A ports
    • 900VA: One Type-A port and one Type-C port
  • Independent Battery Bypass: Provides surge and spike protection even when batteries are weak or dead.
  • 3-year warranty (electronics), 2-year warranty (batteries)
  • cTUVus certification: (UL1778 5th Edition), CE, FCC Class B

Protects Against Spikes, Surges, Brownouts, and Blackouts
Feature-Rich Design

  • Compact case design
  • Sleek LED lighting bar and logo display
  • LCD Front Panel Display (900VA model)
  • LED status indicators
  • USB Communications (600/750/900VA models)
  • USB Charging Ports (600VA and 900VA models only)
    • 600VA: Two Type A ports
    • 900VA: One Type A and one Type C port
  • Hot-swappable battery
  • Easy battery access
  • Tool-less battery replacement design
  • 3-year warranty (electronics), 2-year warranty (batteries)
  • RoHS 2 compliant
  • Energy Star 2.0 certified
  • Meets Department of Energy efficiency standards
  • High-efficiency Green Mode
  • Transformer-friendly receptacles
  • DC Startup capability
  • Built-in self-diagnostics testing
  • Site-wiring fault indicator
  • Audio & Visual alarms
  • Alarm silence button
ENSPIRE-G® UNINTERRUPTIBLE POWER SUPPLY

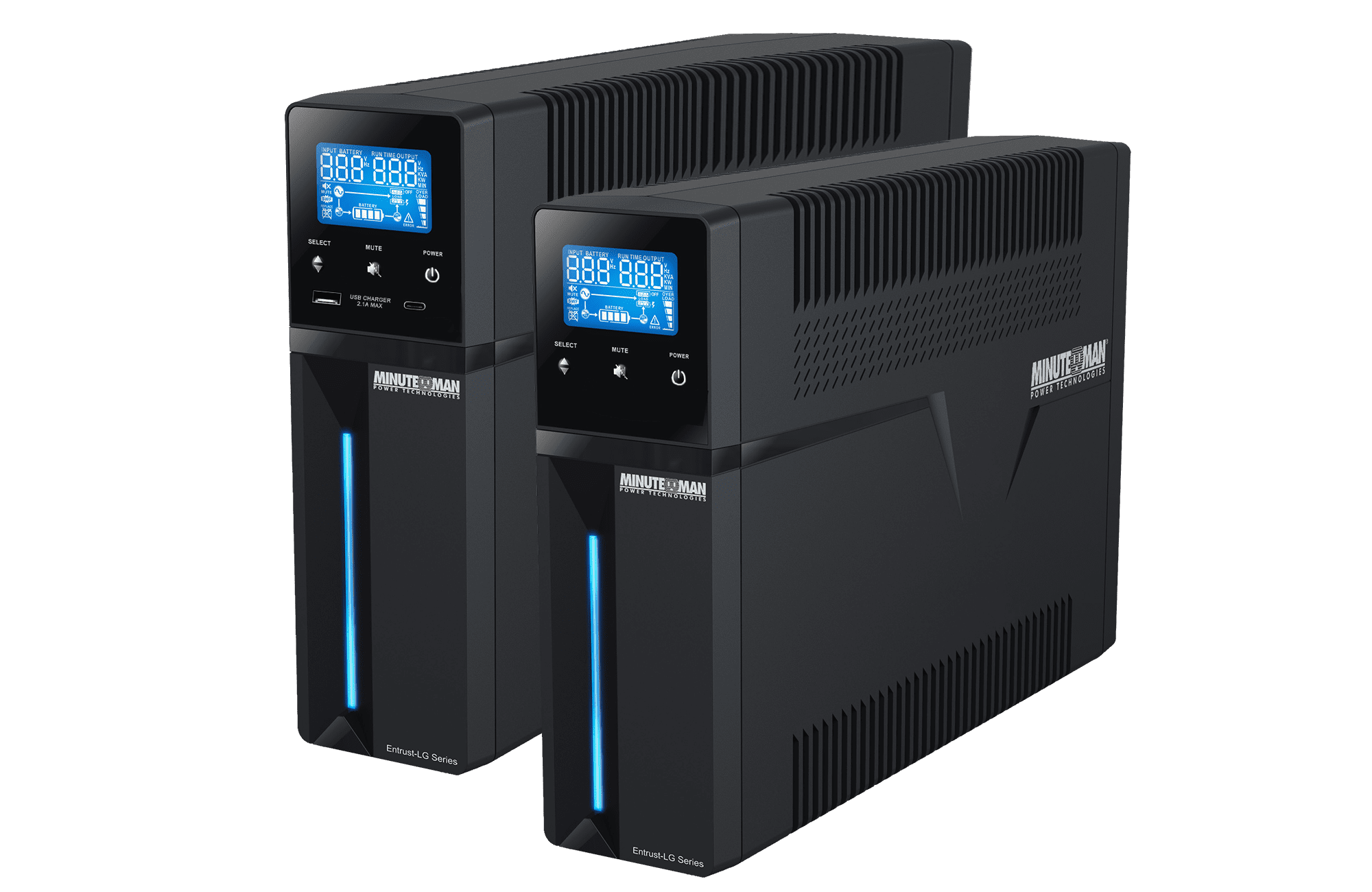

ENTRUST-LG® UNINTERRUPTIBLE POWER SUPPLY

Compact Tower, Powerful Performance

The Minuteman Entrust-LG Series UPS packs premium features into a cost-effective solution, including automatic voltage regulation, spike and surge protection, and battery backup. Its line-interactive technology ensures continuous and stable power.

With its small footprint, the Entrust-LG is ideal for tight spaces like network closets, AV cabinets, and small offices. Ranging from 550VA to 2000VA, it supports everything from PCs to small telephone systems.

APPLICATIONS

  • Gaming Consoles and Computers
  • Desktop Workstations
  • Network Equipment
  • VoIP Communications
  • Telephone Systems
  • External Computer Accessories
  • Security Cameras and DVRs
  • Gaming Consoles and Computers
  • Desktop Workstations
  • Network Equipment
  • VoIP Communications
  • Telephone Systems
  • External Computer Accessories
  • Security Cameras and DVRs

Protects Against Spikes, Surges, Brownouts, and Blackouts

  • Automatic Voltage Regulation (AVR)
  • Four surge and battery-protected outlets (550/850VA models)
  • Four surge-only outlets for protection of non-critical accessories (550/850VA models)
  • Five surge and battery-protected outlets (1000/1350VA models)
  • Five surge-only outlets for protection of non-critical accessories (1000/1350VA models)
  • Four NEMA 5-15/20R surge and battery protected outlets (2000VA model)
  • Four NEMA 5-15/20R surge-only outlets for protection of non-critical accessories (2000VA model)
  • 6-foot power cord with right-angle NEMA 5-15P (550VA/850VA/1000VA/1350VA models)
  • 6-foot power cord with right-angle NEMA 5-20P (2000VA model)
  • Input circuit breaker protection

Feature-Rich Design

  • Compact mini-tower case design
  • LCD Front Panel Display
  • USB Charging Ports (1-Type A/1-Type C) on 1000/1350/1500/2000VA models)
  • USB communications
  • Coax Surge protection-port
  • RJ45 Ethernet surge protection port (1Gbit)
  • Hot-swappable batteries
  • Front panel battery access
  • Tool-less battery replacement design
  • 3-year warranty (electronics) 2-year warranty (batteries)
  • RoHS 2 compliant
  • Energy Star 2.0 certified
  • Department of Energy 10CFR Part 430 compliant (550/850/1000/1350/1500VA models)
  • Transformer-friendly receptacles
  • DC Startup capability
  • Built-in self-diagnostics testing
  • Audio & Visual alarms
  • Alarm silencer button
  • Scroll Button for LCD Display and UPS Status
  • Efficient Automatic Voltage Regulation (AVR) Hardware
    Regulates output voltage for protection against spikes, surges, brownouts, and blackouts
  • Compact form factor ideal for tight installs
  • Protect all of your devices
    8-10 power battery backup and surge-only outlets ensure space for all pieces of the system
  • Tool-less Battery Access
    Setup and maintenance made easy with tool-less battery panel
  • Efficient, Responsible Power
    Energy Star 2.0, DoE 10CFR Part 430, and RoHS 2 Compliant
  • Total Control of Your Power
    Free download of Minuteman SentryHD management software connects via USB and provides total monitoring and management capability
  • Independent Battery Bypass
    Provides voltage regulation with surge and spike protection, even when batteries are weak or dead
  • Unmatched Peace of Mind
    3-year limited warranty (electronics), 2-year warranty (batteries), and Minuteman Platinum Protection Plan™

Front Panel Display and Controls:

The front panel controls will have the following indicators and function buttons:

  1. Realtime Display (Input / Output)
  2. AC Mode Icon
  3. On Battery Icon
  4. “Error” Icon
  5. Replace Battery Icon
  6. Site Wiring Fault (SWF) Icon
  7. Load Shedding Status
  8. Load Status
  9. Battery Capacity
  10. “POWER” – On/Off/Test Button
  11. “SELECT” – Menu Scroll Button
  12. “MUTE” – Alarm Silencer Button

UPS ­Back Panel Connections:

  1. Battery & Surge Outlets: Connect critical equipment such a PCs, Gaming Consoles, and Routers to the “Battery & Surge” outlets on the UPS to maintain power during power outages.
  2. Load Shedding Outlets: Can be shut off via front panel or through SentryHD
  3. Surge Only Outlets: For all other non-critical devices use the “Surge-Only” outlets.
  4. USB Communications Port: The Entrust-LG Series is compatible with Minuteman’s SentryHD monitoring and management software which is available as a free download at www. minutemanups.com/minuteman-software-download-center/. Use the included USB communications cable to connect the UPS to your computer and follow the installation instructions included with the SentryHD download.
  5. Surge Protection Ports: Optional surge protection for Ethernet network connections (RJ45) or broadband connections (Coax) are available but not required for the operation of the UPS. and
  6. Surge Protection Ports: Optional surge protection for Ethernet network connections (RJ45) or broadband connections (Coax) are available but not required for the operation of the UPS.
  7. Resettable Input Circuit Breaker: Allows the UPS to be reset in the event of an overload. (First remove one or more connected devices from the UPS to reduce the load before pressing the circuit breaker).
  8. Input Power Cord: Utilizes a NEMA 5-15P for connecting to utility source. (NOTE: The ETR2000LG uses a NEMA 5-20P input plug).
ENTRUST-LG® UNINTERRUPTIBLE POWER SUPPLY

Midsize Network, Phone, & Security/DVR Systems

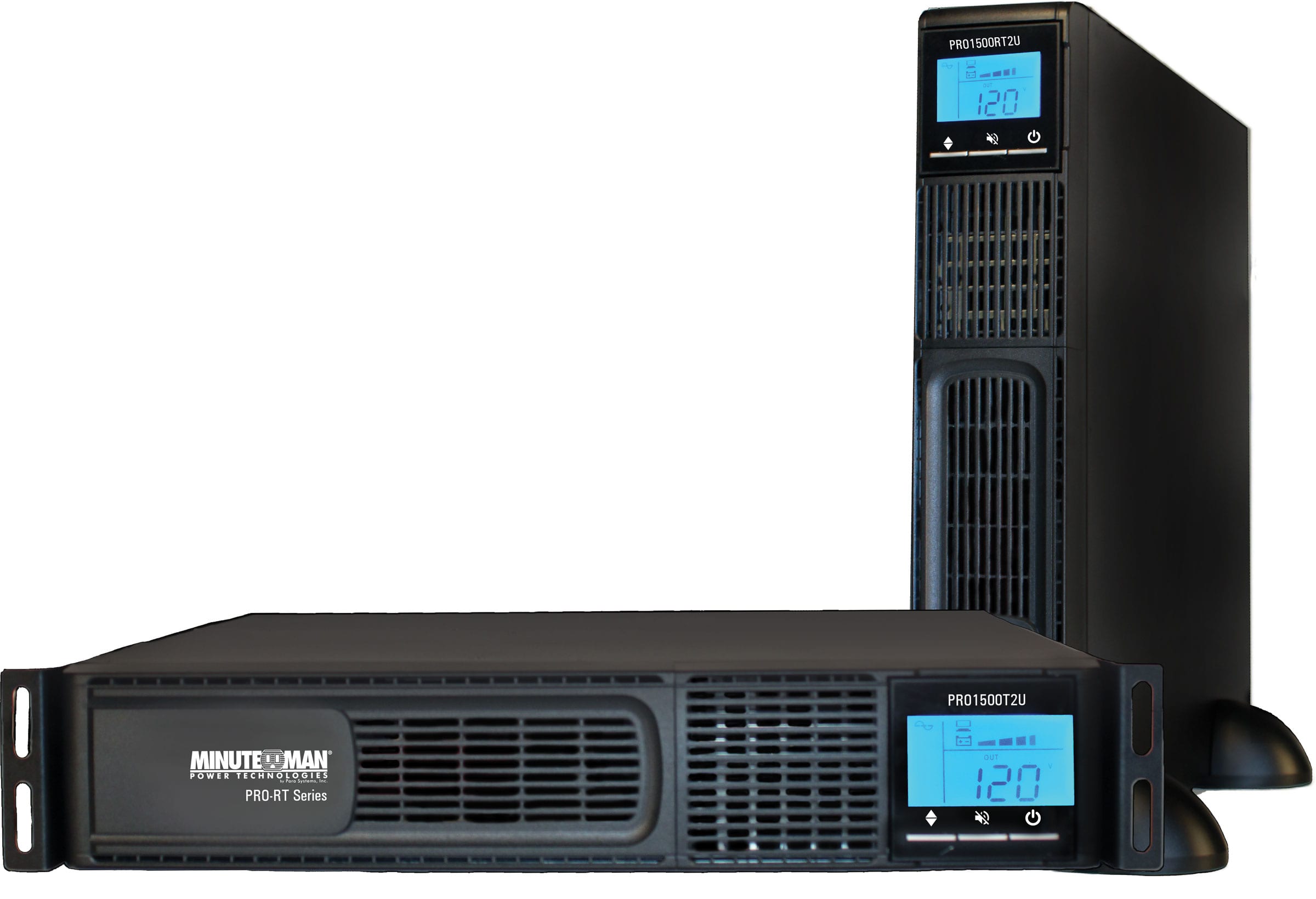

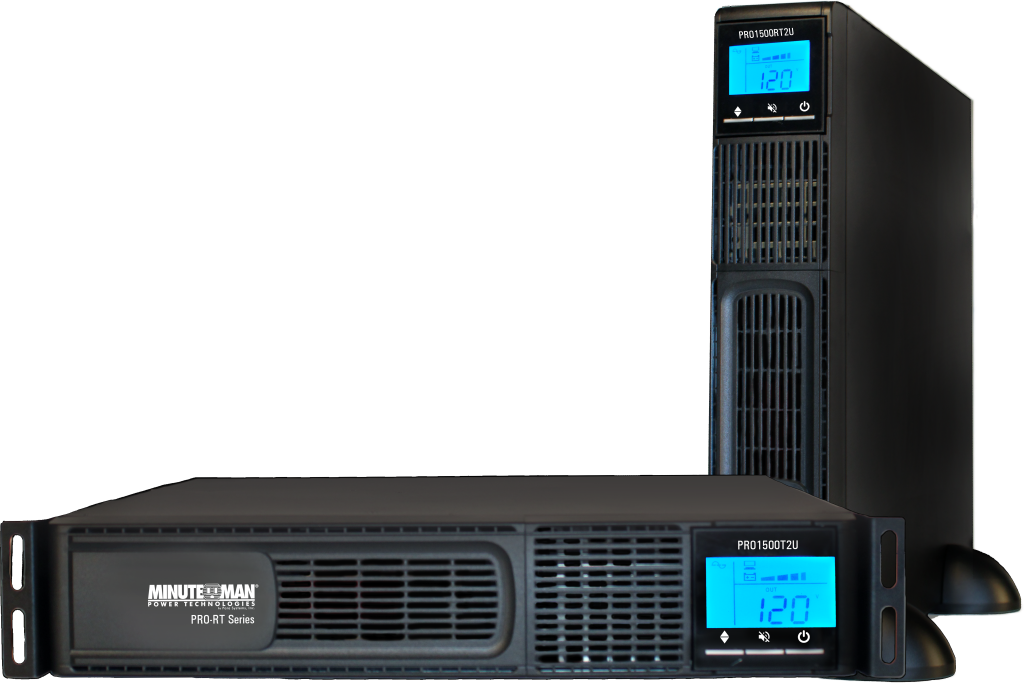

PRO-RT2U® LINE INTERACTIVE UNINTERRUPTIBLE POWER SUPPLY

Optimal Protection for Rack-Mount Systems

The PRO-RT2U Series offers a cost-effective, feature-rich UPS using line-interactive technology. This technology efficiently regulates voltage during brownouts and voltage sags to preserve battery life. It’s ideal for supporting servers, telecom or VoIP systems, security systems, and other critical applications.

Key features of the PRO-RT2U UPS include load-shedding across two load banks, an independent battery bypass, and an auto-restart function that restores power automatically after extended outages.

APPLICATIONS

  • Telecom
  • VoIP Systems
  • Network Servers
  • Security Systems
  • Telecom
  • VoIP Systems
  • Network Servers
  • Security Systems

Perfect Protection for Rack-Mount Systems:

  • Protection from Spikes, Surges, Brownouts, and Blackouts:
    • Buck and boost Automatic Voltage Regulation (AVR) function
    • All outlets are battery and surge-protected
    • RJ11 / RJ45 spike/surge protection for phone/fax/modem/network connections (1Gb)
    • Coax protection for satellite/cable
  • Rack/Tower Installation:
    • 2U rack height or wall mounting with optional kit
  • Minuteman SentryHD Software:
    • Automatically saves and shuts down unfinished or open applications
    • Powers down your devices during blackouts
    • Provides comprehensive power monitoring
  • USB Communications:
    • No special USB drivers are required; recognized by Microsoft® Windows® as an HID-compliant device
  • SNMP Compatible:
    • Each PRO-RT2U unit can be managed on a network with the addition of an optional SNMP management card (NC models include a pre-installed network card)
  • Fax/Modem/Network/Coax Line Protection:
    • Provides a low-cost means of protecting fax/modem/network lines
  • Independent Battery Bypass:
    • Provides voltage regulation with surge and spike protection even when batteries are weak or dead
  • Auto-restart:
    • Automatically restarts and provides power to attached devices when power returns after an outage and batteries are fully drained
  • Warranty:
    • Three-year parts and labor warranty and a $100,000 Minuteman Platinum Protection Plan® (U.S.A. and Canada only)
    • Five-year warranty options available

PRO-RT2U Power Management via SNMP Communications:

  • Optional SNMP-NV6 card allows easy management of UPS without the need for a connected PC or server

Versatile Communications:

  • Compatible with Minuteman’s free downloadable SentryHD™ power management and diagnostic software
  • Complete control over monitoring and managing the UPS using a web browser-based interface
  • Easy management within a Network Management System (NMS) with an optional SNMP card

Design Features:

  • Can be mounted in a standard rack using the attached rackmount ears or installed as a tower using the included feet
  • Optional kit available for wall mounting

LCD Status Display Features:

  • Input / Output voltage and frequency
  • Monitor the status of your utility power
  • UPS and battery mode/status
  • Load capacity and estimated runtime based on connected load
  • Clear display of the unit’s status and remaining backup time during a blackout

  1. LCD Status Display
  2. Rackmount Brackets
  3. Input Circuit Breaker
  4. Input Power Cord
  5. Coax Surge Protection
  6. Emergency Power Off
  7. Fan
  8. USB Port
  9. RJ11/RJ45/Fax/Modem Network Protection
  10. Controllable Output Receptacles (6)
  11. Always On Receptacles (2) (Only one on the PRO2000RT2U)
  12. Option Card Slot
PRO-RT2U® LINE INTERACTIVE UNINTERRUPTIBLE POWER SUPPLY

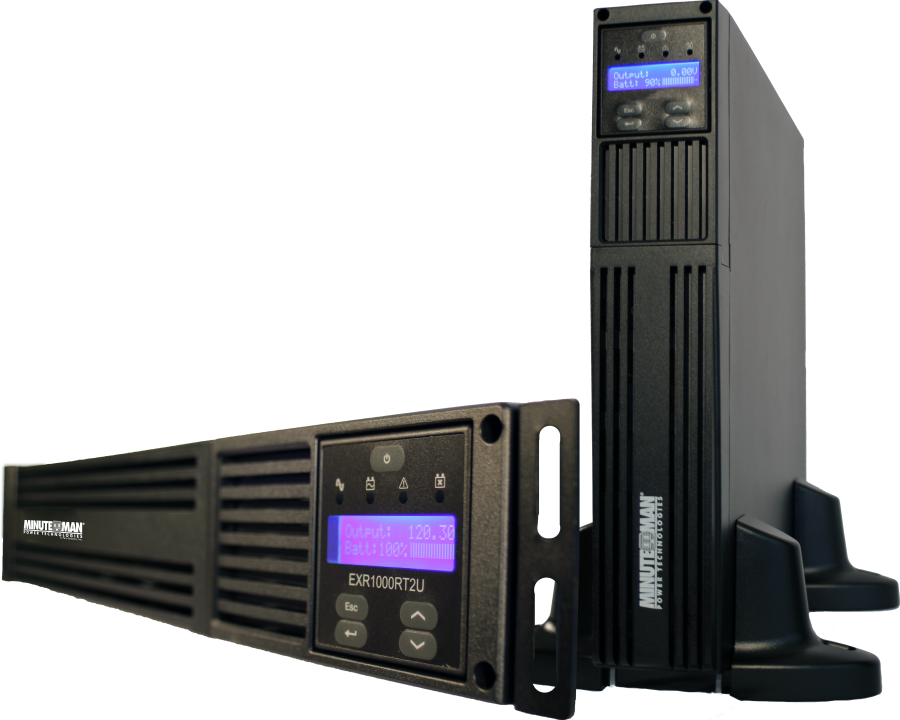

EXR® LINE INTERACTIVE UNINTERRUPTIBLE POWER SUPPLY

Redefining Backup Versatility: Line Interactive Technology with True Sine Wave Output

Introducing the EXR Series, an advanced line interactive UPS that sets a new standard in backup power solutions. Featuring a suite of cutting-edge features, it offers users unparalleled reliability and performance. Experience enhanced UPS efficiency with a higher power factor, seamless extended runtime with auto-recognition of external battery packs, and effortless maintenance with tool-less battery connection and replacement.

The EXR Series provides comprehensive protection against all electrical anomalies, including spikes, surges, sags, brownouts, and blackouts, all packaged in a flexible rack/tower convertible format. With its true sine wave electrical output, it ensures optimal power delivery for even the most sensitive electronic equipment.

APPLICATIONS

  • Network Servers
  • Remote IDF Closet
  • Remote MDF Closet
  • Telecom/VoIP Systems
  • Medium-sized Security Systems
  • Network Servers
  • Remote IDF Closet
  • Remote MDF Closet
  • Telecom/VoIP Systems
  • Medium-Sized Security Systems

Key Features Include:

  • 0.9 Power Factor: Increased capacity without migrating to larger models
  • New Alphanumeric LCD Dot Matrix Display: Easy access to key UPS statuses
  • UPS Configuration Options via Front Panel: Make key adjustments utilizing the front panel LCD
  • Load Shedding: Two power banks allow equipment prioritizing for increased runtime
  • Independent Battery Bypass™: Provides voltage regulation with surge and spike protection even when batteries are weak or dead
  • Auto-Recognition of External Battery Packs: Automatically recalculate runtimes
  • Unlimited Runtime Capability with External Battery Packs: Extended runtime solution to meet any backup power demand
  • Flexible Installation: Rack or tower configurable; wall mount kits available
  • Simultaneous USB, RS232, and SNMP Communications
  • Minuteman® SentryHD™: UPS monitoring and control software included
  • Industry-Leading Product Warranty: Featuring a 3-year non-prorated warranty (including batteries)
  • Dedicated Remote Emergency Power Off (EPO) Port
  • 120V & 208V: 208V models available (1500 & 3000VA models)
  • cULus Certification – NOM Certification (Mexico)
  • RoHS 2 Compliant
  • Energy Star 2.0 Certification

The NEW Alphanumeric LCD Dot-Matrix EXR Series Display
Provides more detailed information about the UPS status than the previous LCD display, including:

  1. Input and Output Voltage
  2. Estimated runtime
  3. UPS Operating Mode
  4. UPS Self-test results
  5. Battery Condition
  6. Display model and serial number
  7. View load bank status and capacities
  8. Display battery module part number
  9. Replace Error Codes with descriptions

The LCD panel is designed so that it can be oriented vertically or horizontally depending on the installation orientation of the UPS.

EXR® LINE INTERACTIVE UNINTERRUPTIBLE POWER SUPPLY

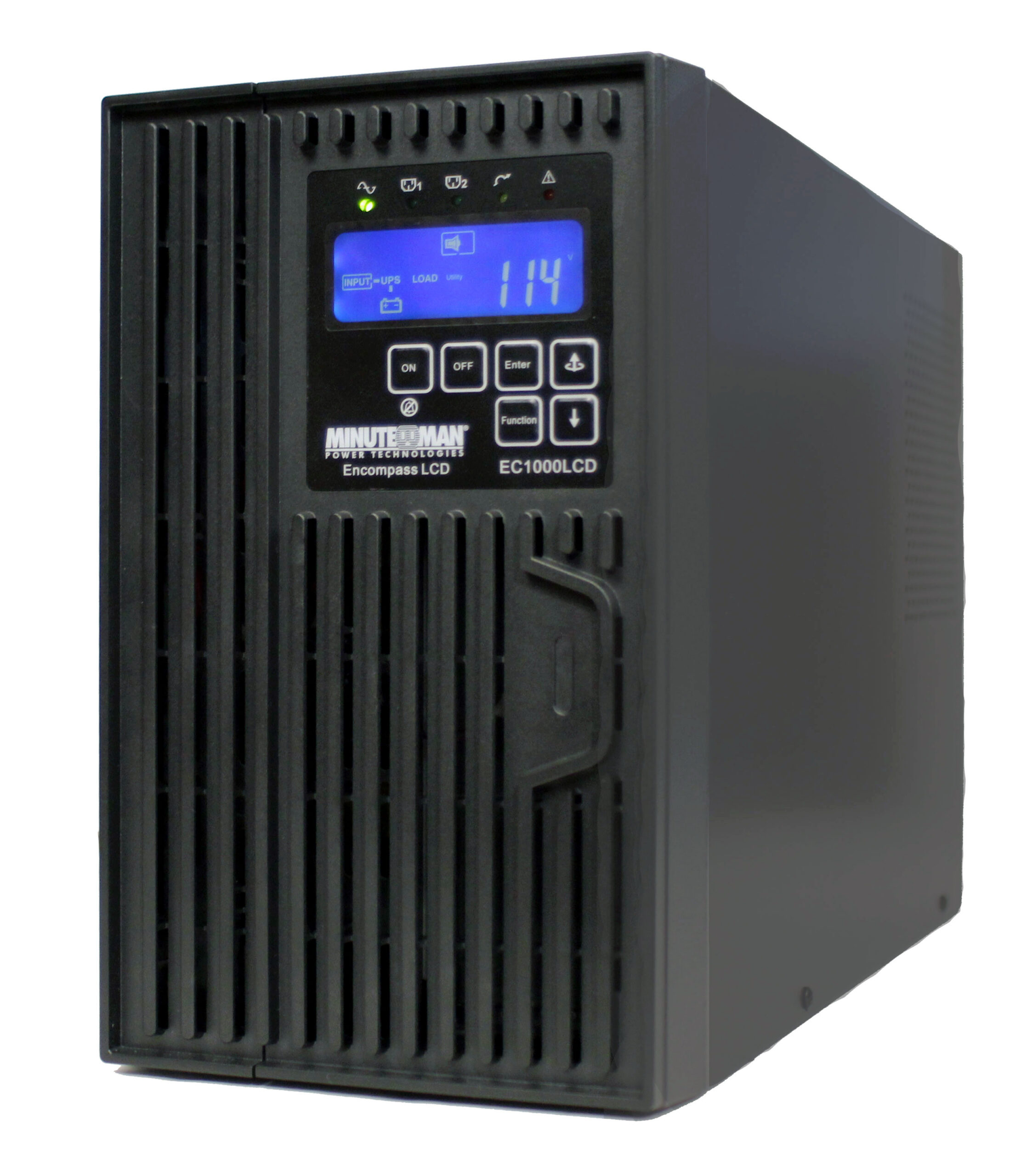

ENCOMPASS® LCD ONLINE UNINTERRUPTIBLE POWER SUPPLY

Robust Power Security for High-Stakes Environments

Designed to protect essential equipment in data centers, communication systems, security setups, and light industrial applications, the Encompass Series provides advanced online UPS capabilities. It offers SNMP compatibility (optional card) for full device management via Minuteman’s SentryHD software. The series ensures exceptional performance with true sine wave output and generator compatibility, backed by a three-year comprehensive warranty. Engineered for the most demanding applications, the Encompass Series guarantees reliable, continuous protection at a competitive price.

APPLICATIONS

  • High-Density Systems
  • Hospitals
  • Mission-Critical Devices
  • Other Sensitive Electronic Devices
  • Extended Runtime Capable
  • High-Density Systems
  • Hospitals
  • Mission-Critical Devices
  • Other Sensitive Electronic Devices
  • Extended Runtime Capable

Encompass Series Standard Features:

  • Technology: True online, double-conversion technology
  • Design: Compact case design (only 2U for all models), suitable for high-density rack installations
  • Installation Flexibility: Rack/Tower format with attached rackmount ears
  • Display: Easy-to-read LCD display
  • Efficiency:
    • 0.9 output power factor
    • Highly-efficient, Economy Mode option
  • Control Features:
    • Output receptacle control with 2 banks
    • Independent Battery Bypass – allows voltage regulation and spike/surge protection with or without batteries
  • Maintenance:
    • Hot-swappable battery replacement
    • Tool-less battery replacement design
  • Operation:
    • Cold Start capable
    • Automatic internal bypass
  • Communications:
    • Simultaneous USB and RS-232 communications
    • Compatible with Minuteman’s SentryHD software
    • SNMP compatible (with optional card)
    • 1Gbit RJ45 network protection
  • Safety: Dedicated EPO port
  • Warranty: Full three-year warranty (including batteries)
  • Environmentally Friendly: Green UPS design (RoHS2 compliant)
  • Protection Guarantee: $150,000 Platinum Protection Guarantee

Detailed Feature Insights:

  • Output Power Factor: 0.9 power factor increases watt capacity, offering larger capacities in smaller UPS sizes, reducing overall cost.
  • Output Voltage: Maintains nominal voltage within 2%, improving power quality and extending equipment life.
  • Total Harmonic Distortion (THD): Provides power factor correction to reduce THD and maintain a true sine wave output, protecting sensitive equipment.
  • Output Receptacle Control: Features load shedding to extend runtime for critical devices during extended blackouts. Allows independent control of two receptacle segments.
  • Communication Features:
    • Offers RS-232, USB, and Ethernet communications simultaneously.
    • Allows detailed monitoring and management via Ethernet (SNMP or direct IP).

Compliance and Testing:

  • RoHS 2 Compliance: Complies with EU directives to reduce hazardous substances in electronic equipment.
  • Manual and Automatic Self-Testing: Proactively notifies of faults or failures, allowing preemptive maintenance to avoid unexpected downtime.
  • Dedicated EPO Port: Enables immediate remote shutdown in emergencies or when UPS access is restricted.

  1. The ON button is to turn the UPS on. Pressing the ON button during the Battery mode will silence the alarm.
  2. The OFF button is to turn the UPS off.
  3. The Utility Power (Green) LED illuminates when Utility Power is present and extinguishes during the Battery mode.
  4. The Load Bank 1 (Green) LED is illuminated when the Load Bank is on.
  5. The Load Bank 2 (Green) LED is illuminated when the Load Bank is on.
  6. The Bypass Active (Yellow) LED illuminates when the UPS is in the Bypass mode.
  7. The Weak/Bad Battery (Red) LED illuminates when the UPS detects a weak battery, bad battery or if the battery is disconnected. The Weak/Bad Battery icon is extinguished when the battery’s condition is good.
  8. The LCD displays the status of the UPS.
  9. Pressing the Enter button saves the changes made to the UPS settings.
  10. Pressing the Page Up button goes to the previous page or will change the UPS settings.
  11. Pressing the Page Down button goes to the next page.
  12. Pressing the Function button and then the Page Up button will initiate a 10- second battery test.
ENCOMPASS® LCD ONLINE UNINTERRUPTIBLE POWER SUPPLY

Enterprise Data Center, Network/Server, & Security Systems

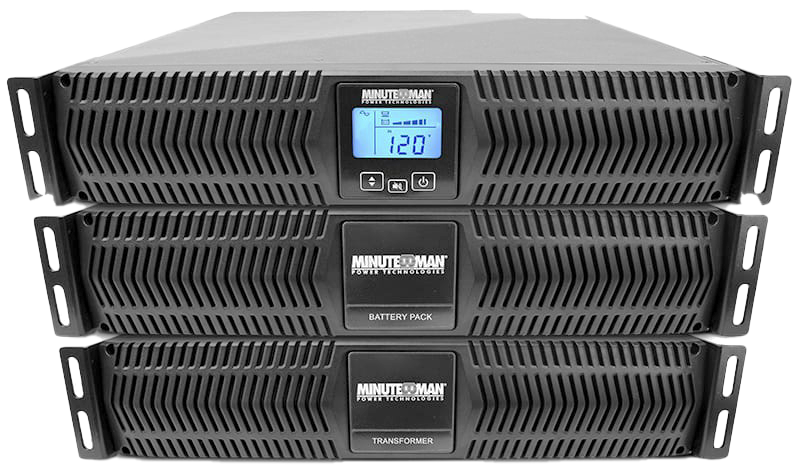

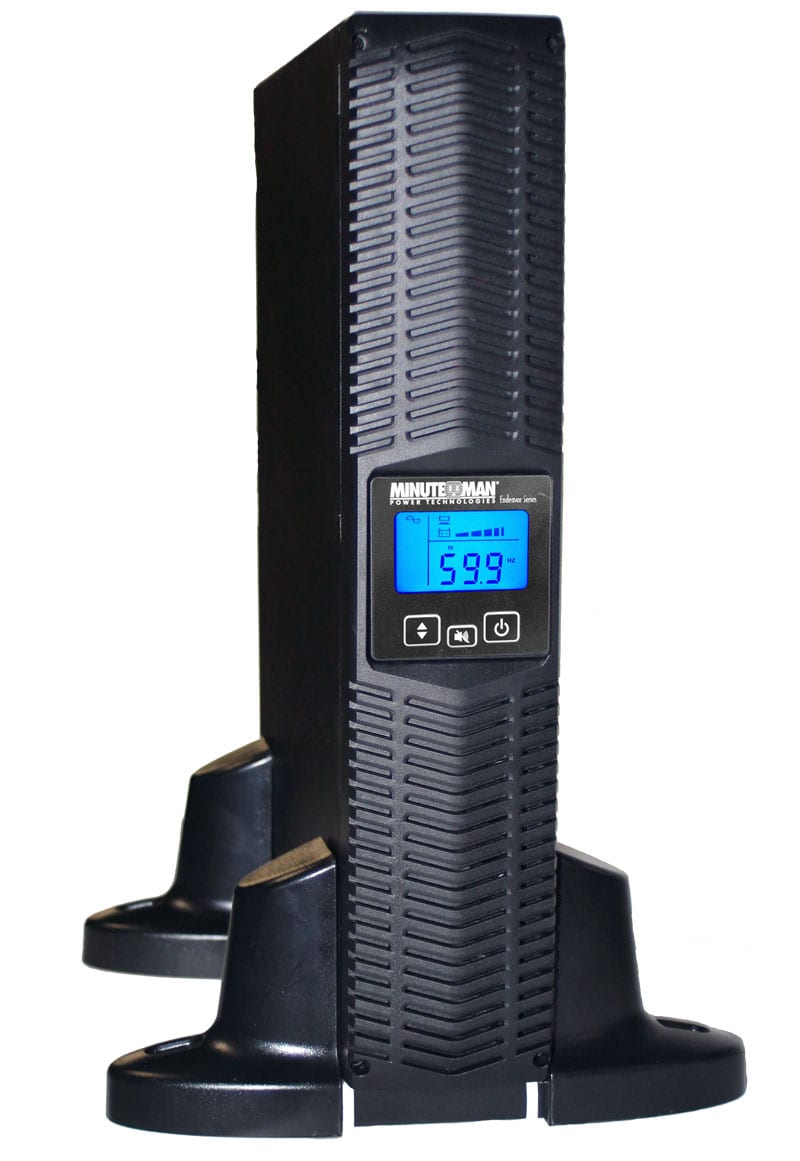

ENDEAVOR LCD® ONLINE UNINTERRUPTIBLE POWER SUPPLY

Optimal Resilience for Essential Systems and Networks

In today’s nonstop business environment, downtime is unacceptable. Minuteman’s Endeavor LCD Series is built to meet the rigorous demands of critical applications, providing unmatched reliability as a true online UPS. With a true sine wave output and an industry-leading 5-year warranty covering parts, labor, and batteries, it ensures peace of mind.

The Endeavor LCD Series offers continuous power conditioning through double conversion online technology, ensuring seamless emergency backup power. For extended runtime needs, it supports optional external battery packs and is generator friendly.

Designed to protect servers, data storage, switches, routers, and more in various settings such as data centers, network closets, telecom, and security systems, the Endeavor LCD Series delivers premium protection where it matters most. Trust Minuteman’s Endeavor LCD Series for complete power reliability.

APPLICATIONS

  • High-Density Systems
  • Corporate Servers
  • Mission-Critical Devices
  • Other Sensitive Electronic Devices
  • Extended Runtime Capable
  • High-Density Systems
  • Corporate Servers
  • Mission-Critical Devices
  • Other Sensitive Electronic Devices
  • Extended Runtime Capable

  • True online, double-conversion technology: Provides reliable power protection
  • Compact case design (only 2U for all models): Ideal for high-density rack installations
  • Flexible installation format: Rack/Tower or Wall (with optional install kit)
  • Rackmount ears come attached to UPS: Simplifies installation
  • Easy-to-read LCD display: Provides clear UPS status information
  • 0.9 output power factor: Increases watt capacity, reducing UPS solution costs
  • Highly-efficient, Economy Mode option: Improves energy efficiency
  • Output receptacle control with three load banks: Enables load shedding for extended runtime
  • Independent Battery Bypass: Provides voltage regulation and surge protection with or without batteries
  • Hot-swappable battery replacement: Ensures continuous protection during battery replacement
  • Cold Start capable: Allows startup without utility power
  • Temperature-compensated charging: Extends battery life
  • Automatic internal bypass: Maintains power delivery during UPS overload or fault conditions
  • Simultaneous USB and RS232 communications: Provides multiple communication options
  • Site-wiring fault indicator: Alerts to wiring faults in real-time
  • Compatible with Minuteman’s SentryHD software: Enables UPS monitoring and control
  • SNMP compatible (with optional card): Enables remote monitoring and management
  • Dedicated EPO port: Allows immediate remote shutdown in emergencies
  • External battery pack capability for virtually unlimited runtime: Ensures extended runtime
  • RJ11/45 Network/Phone/Fax protection: Safeguards communication equipment
  • A standard five-year warranty (including batteries): Provides peace of mind
  • Green UPS design (RoHS and Energy Star compliant): Promotes environmental responsibility
  • $200,000 Platinum Protection Guarantee: Offers added assurance
  • Output Power Factor: Increases watt capacity, reducing overall UPS solution costs
  • Output Voltage: Maintains stable voltage, increasing equipment life expectancy
  • Total Harmonic Distortion (THD): Reduces distortion for better equipment performance
  • Output Receptacle Control: Enables load shedding for extended runtime
  • Simultaneous RS-232, USB, and Ethernet Communications: Provides multiple communication options
  • RoHS 2 Compliance: Promotes environmental responsibility
  • Energy Star Certified: Ensures efficient power use and energy cost savings
  • Manual and Automatic Self-Testing: Proactively notifies users of impending faults or failures
  • Dedicated EPO Port: Allows immediate remote shutdown in emergencies
  • Extended Runtime Capability: Supports external battery packs for extended runtime
  • Fast Battery Recharge: Provides quick recovery after full load discharge
  • Battery Technology: Ensures safe transport and easy installation
  • Hot-Swappable Batteries: Allows battery replacement without service interruption

The Endeavor LCD’s front panel display provides a range of information to users, including:

  1. Unit status indicators
  2. Load & battery meters
  3. Power status, runtime
  4. Scroll, mute, & power controls

The LCD panel is designed so that it can be oriented vertically or horizontally depending on the installation orientation of the UPS.

ENDEAVOR LCD® ONLINE UNINTERRUPTIBLE POWER SUPPLY

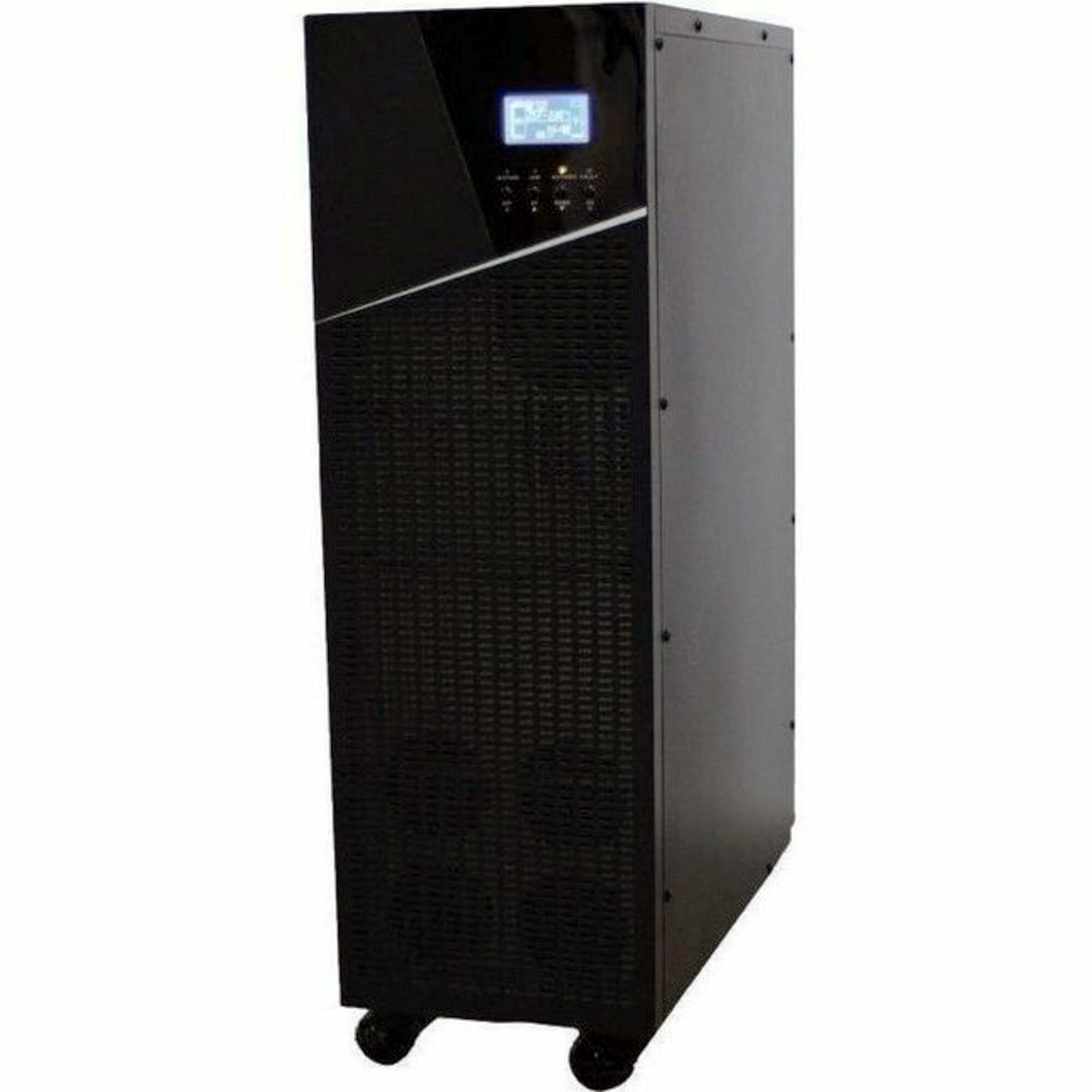

ENDEAVOR 6 & 10KVA TOWER® ONLINE UNINTERRUPTIBLE POWER SUPPLY

Advanced Power Security for Critical Infrastructure and Equipment

Designed for sensitive electronic equipment and critical infrastructure, the Minuteman® Endeavor™ 6 & 10kVA Tower Series UPS ensures robust protection with true online, pure sine wave output. Ideal for supporting large loads in network data centers, remote network closets, and educational networks, this UPS excels in mission-critical applications. It features a front-panel LCD display that visually communicates the UPS status, including AC input, battery condition, and fault indications, ensuring optimal performance and reliability for critical servers, network devices, and phone systems.

APPLICATIONS

  • High-Density Installations
  • Enterprise Network Installations
  • Network Corporate Servers
  • Telecom/VoIP Systems
  • Extended Runtime
  • High-Density Installations
  • Enterprise Network Installations
  • Network Corporate Servers
  • Telecom/VoIP Systems
  • Extended Runtime

  • True online, double-conversion topology
  • Single-phase, 208 input, with configurable output voltages: 120/208/220/230/240VAC
  • Isolation transformer for full-load 120VAC support
  • Higher output power factor:
    • 1.0 (with 20 internal batteries)
    • 0.9 (with 18 internal batteries)
    • 0.8 (with 16 internal batteries)
  • Smaller, compact case design
  • Real-time LCD display
  • EPO port standard
  • Simultaneous communication ports (USB/RS232/SNMP Option Card)
  • Extended runtime via external battery packs
  • Internal Maintenance Bypass
ENDEAVOR 6 & 10KVA TOWER® ONLINE UNINTERRUPTIBLE POWER SUPPLY

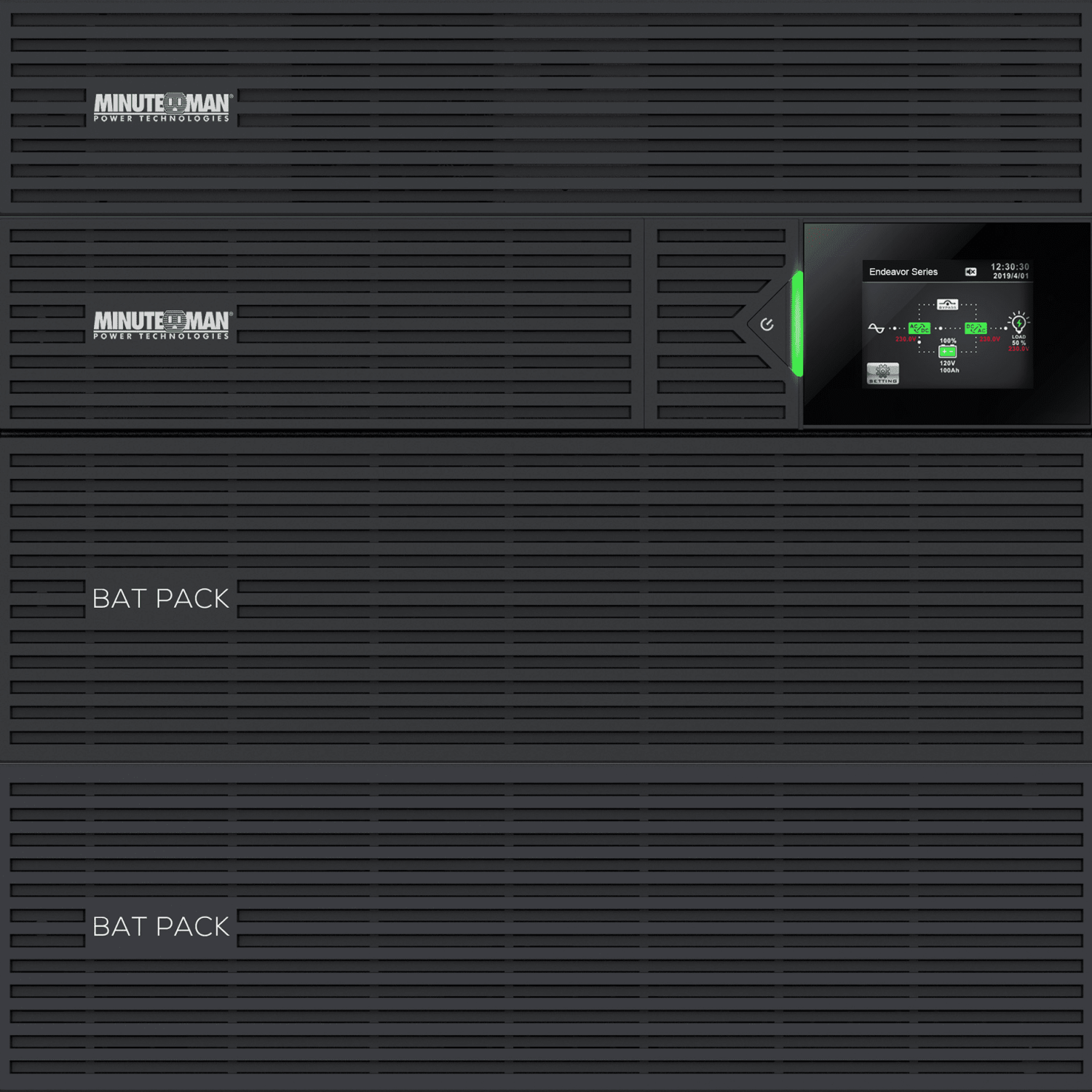

ENDEAVOR® 5-10KVA ONLINE UNINTERRUPTIBLE POWER SUPPLY

Double Conversion Rack/Tower UPS with LCD Display for Critical IT, Telecommunications, and Security Systems

The Minuteman® Endeavor 5-10kVA Series offers uninterrupted power for essential IT, telecom, and security systems. Its clear LCD Display provides instant updates on AC, battery, and UPS status, ensuring maximum uptime and compatibility with generators. Delivering pure sine wave output and adaptability for critical applications, it guarantees reliability and efficiency. This high-density, double-conversion online UPS line is designed to protect critical IT and business infrastructure. With a user-friendly multi-color touchscreen panel, it allows effortless management and monitoring, catering to servers, networks, and industrial applications. Equipped with advanced features like predictive battery replacement and hot-swappable batteries, it’s the ideal choice for IT professionals and administrators seeking dependable power solutions.

APPLICATIONS

  • High-Density Installations
  • Enterprise Network Installations
  • Network Corporate Servers
  • Telecom/VoIP Systems
  • Extended Runtime
  • High-Density Installations
  • Enterprise Network Installations
  • Network Corporate Servers
  • Telecom/VoIP Systems
  • Extended Runtime

Key Features & User Benefits

  • True double-conversion online technology: Provides maximum protection for critical equipment.
  • Digital Signal Processor (DSP) design: Enhances reliability by reducing the number of UPS components, ensuring robust performance.
  • High power factor (0.9pf): Increases real power capacity for each model, delivering more reliable power to connected devices.
  • 120/208V output models with standard receptacles: Offers flexibility to support multiple voltages used on connected loads.
  • Multi-function, color LCD touchscreen display: Enables full UPS configuration and real-time monitoring of input/output power and load condition for user convenience.
  • User-configurable voltages (208V as default): Greater flexibility in tailoring the UPS to suit diverse environments.
  • Automatic internal bypass: Activates Bypass Mode and alerts users in the event of hardware or battery faults, ensuring continuous power.
  • Independent Battery Bypass (IBB): Maintains constant 120/208V output even with dead batteries when utility power is available.
  • Smart fan control: Maximizes UPS cooling efficiency with variable-speed fan control for optimal performance.
  • Cold start function: Start the UPS without available utility power, ensuring continuous operation.
  • Available option slot: Facilitates the use of network or programmable relay cards for enhanced functionalities.
  • Simultaneous serial communication options (USB and RS-232): Offers flexibility in managing and monitoring the UPS system simultaneously.
  • REPO Port: Supports immediate shutdown of output power in emergency situations for added safety.
  • 3-year standard product warranty: Reduces ownership costs and assures greater reliability.
  • Optional 5-year warranty options available: Provides peace of mind with extended guarantees for up to 5 years.
  • Platinum Protection Plan®: Insures connected equipment for up to $250,000, ensuring comprehensive protection.
  • RoHS2 and Energy Star 2.0 compliant: Environmentally-friendly design reduces operating costs and ensures energy efficiency.

New Advanced Features

  • Multi-color, touchscreen LCD panel for easy UPS configuration and monitoring
  • Compact design: 4U for 5/6kVA, 5U for 8/10kVA (208VAC models)
  • High-frequency design for efficient performance
  • Space-saving solution for higher density installations
  • Predictive Battery Replacement feature with early warning alarms
  • Tool-less, front-panel battery connection and replacement
  • Hot-swappable batteries for continuous power
  • Independent battery chargers for unlimited runtime
  • Automatic recognition of additional battery packs for recalculating runtimes
  • Easy connect transformer module with NEMA input plug
  • Wide range of 120V and 208V NEMA output receptacles available in standard configurations
  • Smart ECO Mode feature allows for increased energy savings

Electrical Characteristics

Digital Signal Processor

  • Reduced number of components in the UPS also reduces the potential for defects or malfunctions
  • Digital Signal Processor, (DSP), combines many components into a single processor, increasing the reliability of the UPS and reducing any downtime potential
  • Helps ensure stable, quality power and long life span

High Output Power Factor

  • All models feature an output power factor of 0.9 which increases the Watt capacity of the units
  • Larger capacities in a smaller UPS VA rating can reduce the overall cost of the UPS solution for a specific load requirement

Output T.H.D.

  • Endeavor units maintain an output AC signal within 2% of a true sine wave pattern (Total Harmonic Distortion)
  • Prevents equipment damage from internal heat build up on sensitive connected equipment

Overload Capacity

  • Endeavor UPSs are designed to support such situations with the ability to absorb up to 150% of its rated load for up to 30 seconds
  • Allows the UPS to be sized for maximum capacity without worry of overload and shutdown, providing cost-savings

Advanced Battery Features

  • Independent Battery Bypass allows the Endeavor UPS to operate in Normal Mode, even with weak, dead, or defective batteries
  • Endeavor UPSs monitor internal battery status at regular intervals; If the UPS detects weak or bad batteries, it will engage an audio alarm and also any preconfigured electronic notifications
  • Normal AC output will be maintained as long as utility power is supplied within the UPS’ nominal input range
  • The UPS will have a constant 120/208/240V signal and protection from any dangerous spikes or surges while allowing time to replace batteries without having to shut down connected equipment

Optional 240V Output

  • Endeavor units can be configured for use with 220, 230 and 240V input and output.
  • For information about additional configuration options, please contact your Minuteman representative.

Communication Features

Bundled with SentryHD software

  • Minuteman SentryHD auto-shutdown and monitoring software available via a free download.

SNMP-compatible (with SNMP-NET and SNMP-NV6 cards)

  • All models include a standard internal communication slot which is compatible with all current Minuteman SNMP card options
  • Adding an SNMP-NET or SNMP-NV6 card allows remote management and control over any IP-based network
  • The Option card slot and serial communications port can be operated simultaneously, allowing SNMP to be used in conjunction with Minuteman SentryHD software

Multi-colored Touchscreen LCD Display Panel offers all these features and more:

  • User-friendly UPS configuration and status display
  • Clear and descriptive UPS status information in plain text
  • Convenient display of UPS Serial Number and Model Number
  • Display of Battery Module part number and FW number for easy identification
  • Front screen adjustment for input voltage transfer points and sensitivity
  • Output voltage adjustment accessible via the front screen
  • Serial number reporting through software and SNMP card
  • Easily set Battery Replacement date and manage External Battery Packs from the front screen
  • Access Event logs (Faults & Warnings) directly via the front screen
  • Control Load Shedding function and reset settings to factory defaults via the front panel
  • Display load capacity per output bank and total load for quick assessment
  • Check load bank state and reset Battery Aging Coefficient using the front panel controls

Learn More About Minuteman Solutions!

Learn More About Minuteman Solutions!

Delivering industry-leading power protection solutions for any scale of operation.

Minuteman’s line of battery backup (Uninterruptible Power Supply) products includes a complete range of systems to meet needs large and small, with single-phase solutions in capacities from 350VA – 20kVA. With Minuteman, you can ensure reliable power protection and management for your customers, whether you are backing up a desktop workstation or an entire facility.

Please complete and submit the form below, and a member of the EarthBend Distribution team will contact you with more information about Minuteman!
